Growcol 150 kW Full Commercial Solar System — Indoor

Bundled configuration: GW-MPS0150 150 kW hybrid inverter, Pylontech HV battery stack (≈201.6 kWh), dual master BMS & MBMS1000 main module, four battery cabinets, HV cable kit, and 211.2 kWp PV array (384 × 550 W)

Overview

Built for larger commercial, agricultural and light-industrial sites, the Growcol 150 kW Full Commercial System integrates high-capacity PV, a three-phase hybrid inverter and a modular high-voltage LFP battery. The package delivers dependable backup, peak-shaving and time-of-use arbitrage with closed-loop battery control and installer-friendly indoor hardware.

Key Highlights

• 150 kW three-phase hybrid power for seamless PV + battery blending and robust backup
• ≈201.6 kWh HV lithium storage (36 × 5.6 kWh Pylontech HM3A180) for long reserve times
• High-voltage architecture → lower DC currents, slimmer cabling, improved round-trip efficiency
• Closed-loop BMS control (CAN/RS485) for precise SoC, protection and warranty-compliant charging
• 211.2 kWp PV field (384 × 550 W) sized for strong daytime offset and rapid battery recharge
• Modular, serviceable design with front-access wiring and field-replaceable battery modules
• Comprehensive protections: OV/UV/OCP/OTP, short-circuit and insulation monitoring

Typical Applications

• Retail centres, workshops, cold rooms, lodges and petrol stations
• Farms & agri-processing (irrigation, packhouses, refrigeration)
• Office parks, clinics, schools, telecom and light-industrial facilities

Technical Summary*

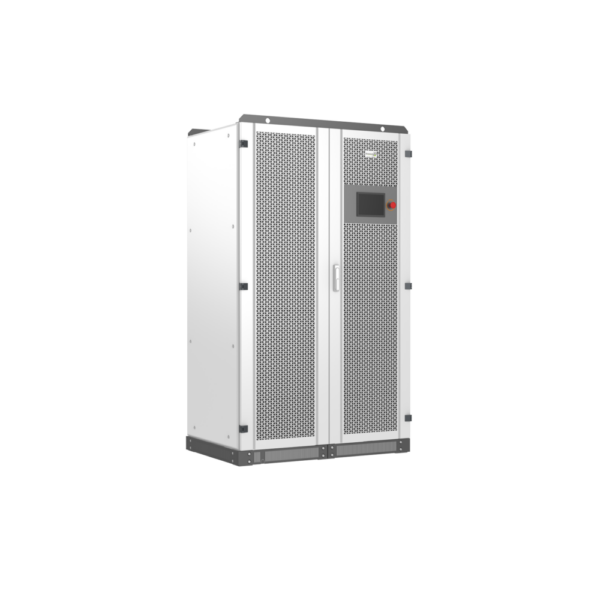

• Inverter: Growcol GW-MPS0150, 150 kW three-phase hybrid
• Battery Energy: ≈201.6 kWh (36 × 5.6 kWh HV LFP modules)
• Chemistry: LiFePO₄ (LFP) for stability, safety and long cycle life

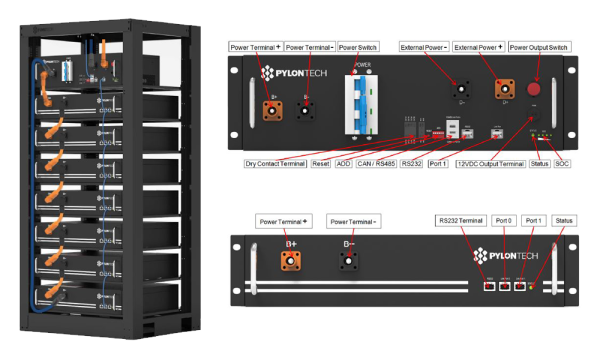

• Battery Control: Dual master BMS with main battery management module (MBMS1000)
• System Voltage: HV stack (cabinet/series count dependent)
• PV Array: ≈211.2 kWp (384 × 550 W half-cell mono)
• Communications: CAN / RS485 (inverter ↔ BMS), monitoring-ready
• Cycle life (typical): ≥6,000 cycles under standard DoD/conditions
• Operating temp (battery): Charge 0–50 °C / Discharge −20–55 °C; optimal 15–30 °C
• Installation: Indoor, ventilated area; front-access cabinets and pre-engineered HV harnessing

*Actual limits and performance depend on site design, utility requirements, firmware and commissioning settings. Always size breakers/fuses and cable gauges to code and the final SLD.

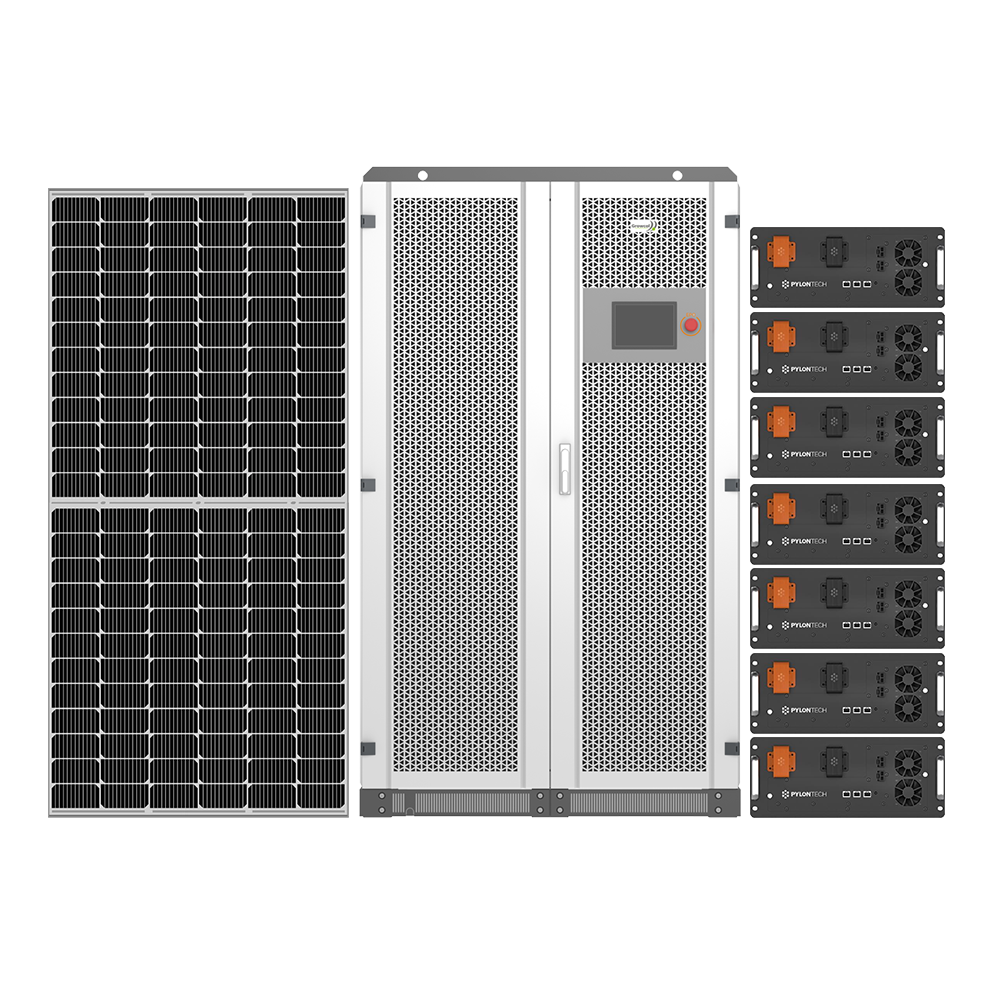

What’s in the Bundle

• 1 × GW-MPS0150 Growcol 150 kW Hybrid Inverter
• 1 × HM3A180CAB KIT Pylontech HM3A180 HV cable kit
• 36 × PYLONHM3A180 Pylontech HM3A180 5.6 kWh HV battery modules (≈201.6 kWh total)
• 2 × SC1500BMS Pylontech SC1000 M3A180 master BMS units
• 1 × MB,S1KNB01V00101 Main battery management module MBMS1000
• 4 × HM3A180-BOX Battery cabinets for HM3A180 stacks
• 2 × CAB-PYHV5M Pylontech HV cable 5 m black
• 2 × CAB-PYHV5MR Pylontech HV cable 5 m red
• 384 × TW550 – 550 W half-cell mono PV modules (≈211.2 kWp)

Integration, Compliance & Support

• Native closed-loop operation between GW-MPS0150 and the Pylontech HV stack for safe, optimized charging.
• Designed to meet relevant IEC/CE/UN38.3 standards (final certificates/batch docs available via authorized channel).
• Supports export limiting, generator interlock and advanced backup modes per local regulations.
• Covered by Growcol inverter and Pylontech battery warranties (regional terms apply), with design review and commissioning guidance through authorized partners.

Professional note: Validate battery-to-inverter power limits, PV charge ceilings, parallel expansion and utility interconnection against the final design, firmware and local grid code before procurement.
