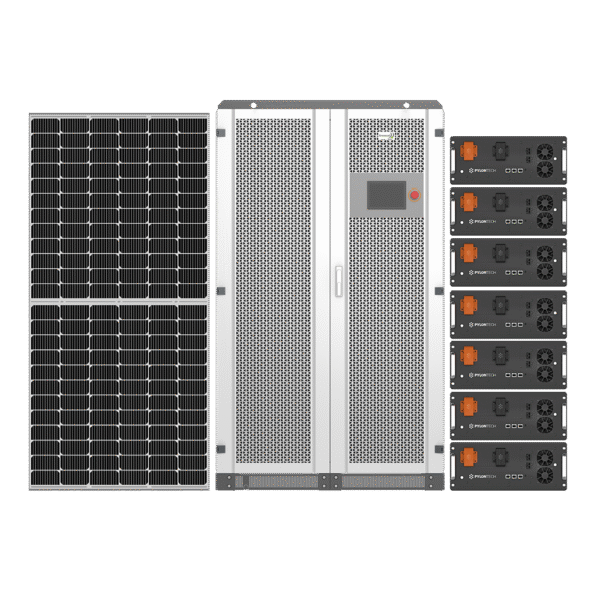

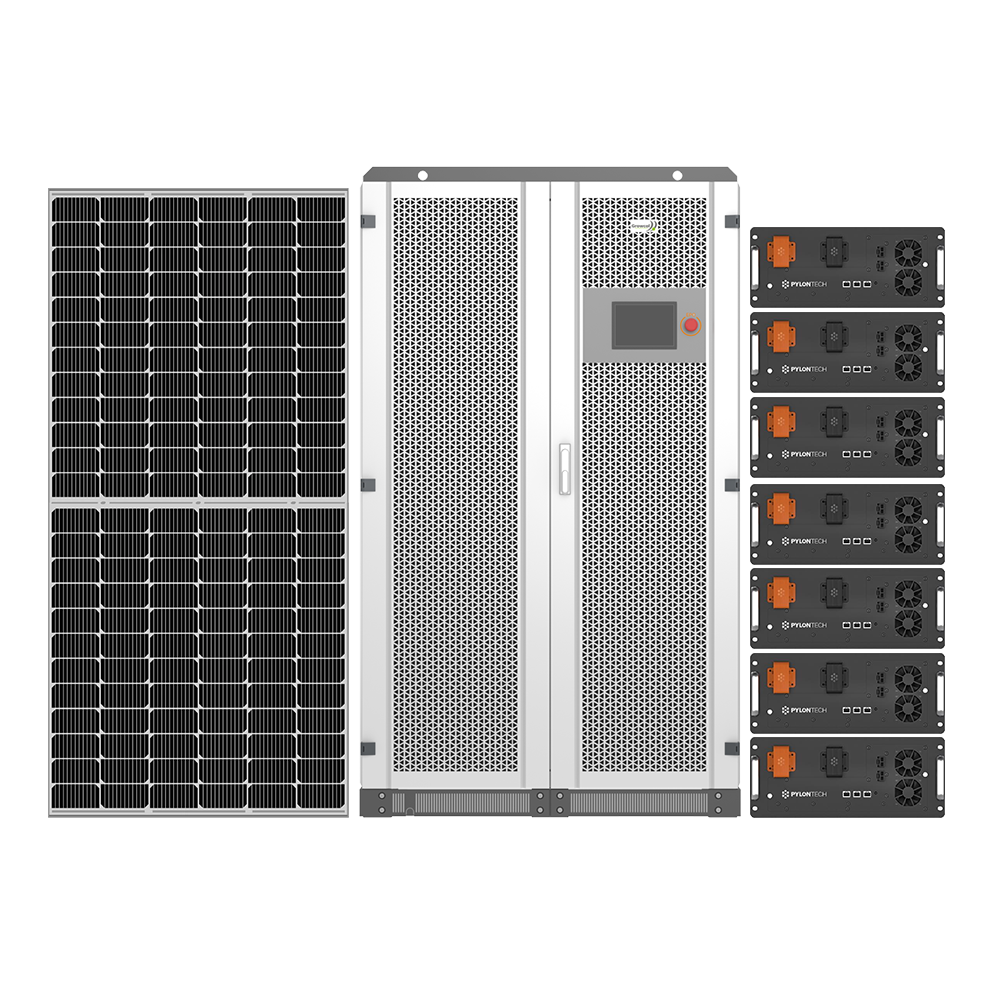

Growcol 500 kW Full Commercial Solar System — Indoor

Bundled configuration: 500 kW three-phase hybrid inverter, Pylontech HV lithium stack (≈537.6 kWh), master BMS + MBMS1000 main module, HV cable kits, and 550 kWp PV field (1000 × 550 W)

Price includes estimated consumables, installation, compliance and engineering certificate costs.

Overview

Designed for high-duty commercial and light-industrial facilities, the Growcol 500 kW Full Commercial System integrates a utility-scale hybrid inverter, a modular high-voltage LFP battery (≈537.6 kWh) and a 550 kWp PV array. The system delivers dependable backup, peak-shaving and time-of-use optimization with closed-loop battery management and installer-friendly indoor hardware.

Key Highlights

• 500 kW three-phase hybrid output for seamless PV + battery blending and robust backup
• ≈537.6 kWh HV lithium storage (96 × 5.6 kWh modules) for extended reserve and high throughput
• High-voltage architecture → lower DC currents, slimmer cabling, higher round-trip efficiency
• Closed-loop BMS control (CAN/RS485) for accurate SoC, optimized charge profiles and multi-layer protection
• 550 kWp PV field sized for strong daytime offset and rapid battery recharge
• Modular, serviceable design with front-access wiring and field-replaceable battery modules
• Comprehensive protections: OV/UV/OCP/OTP, short-circuit, insulation monitoring

Typical Applications

• Manufacturing plants, logistics depots, retail centres & malls
• Cold-storage and agri-processing facilities (irrigation, packhouses, refrigeration)
• Office parks, campuses, clinics, telecom & data/edge sites

Technical Summary*

• Inverter: Growcol 500 kW three-phase hybrid
• Battery Energy: ≈537.6 kWh (96 × 5.6 kWh Pylontech HM3A180 HV, LiFePO₄)
• Battery Control: SC1000 (M3A180) master BMS with MBMS1000 main battery management module
• System Topology: High-voltage series stack(s) with dedicated HV control & protection
• PV Array: ≈550 kWp (1000 × 550 W half-cell mono)
• Communications: CAN / RS485 (inverter ↔ BMS), monitoring-ready
• Cycle life (typical): ≥6,000 cycles under standard DoD/conditions
• Operating temp (battery): Charge 0–50 °C / Discharge −20–55 °C; optimal 15–30 °C
• Installation: Indoor, ventilated area; upstream DC/AC protection and earthing per SLD

*Actual limits and performance depend on site design, utility rules, ambient conditions and commissioning settings. Always size breakers/fuses and cable gauges to code and the final single-line diagram.

What’s in the Bundle

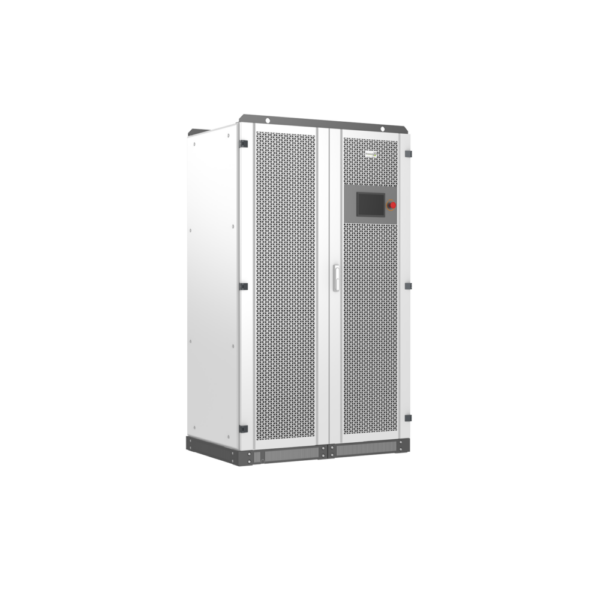

• 1 × Growcol 500 kW Solar Storage Hybrid Inverter
• 96 × Pylontech HM3A180 5.6 kWh HV battery modules (≈537.6 kWh total)
• 6 × Pylontech HV cable 5 m Black
• 6 × Pylontech HV cable 5 m Red
• 6 × Pylontech HM3A180 HV Cable Kit
• 1 × Pylontech SC1000 M3A180 master BMS
• 1 × MBMS1000 main battery management module
• 1000 × TW Solar 550 W half-cell mono PV modules (≈550 kWp)

Integration, Compliance & Support

• Native closed-loop operation between the inverter and Pylontech HV stack for safe, optimized charging.
• Designed to meet relevant IEC/CE/UN38.3 standards (final certificates/batch docs via authorized channel).
• Supports export limiting, generator interlock and advanced backup modes per local regulations.
• Covered by Growcol inverter and Pylontech battery warranties (regional terms apply), with design review and commissioning guidance through authorized partners.

Professional note: Validate battery-to-inverter power limits, PV charge ceilings, cabinet layout and interconnection requirements against the final design, firmware and local grid code before procurement.
