Description

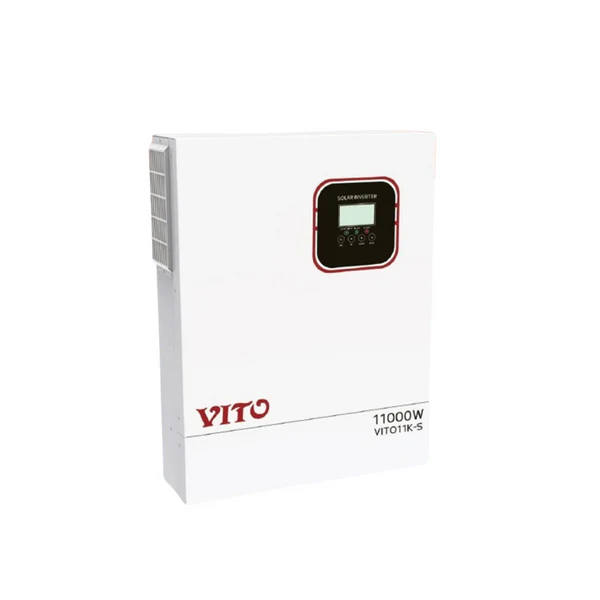

11KVA VITO Hybrid Inverter (Vito11K-S)
The 11KVA VITO Hybrid Inverter (Vito11K-S) is designed to coordinate solar generation, compatible battery storage and grid power in one energy-management platform. It is suited to professionally designed backup and self-consumption systems for homes, businesses or commercial sites, depending on its rated capacity and phase configuration.
Key Features
- Coordinates solar, compatible battery storage and grid power in a single system.
- Supports professional system monitoring and protection when installed with the required accessories.
- Suitable for integration into an engineered solar power system.
Technical Specifications
| Brand | Vito |
|---|---|
| Product | 11KVA VITO Hybrid Inverter (Vito11K-S) |
| Product category | Inverters |
| Operating type | Hybrid inverter |
| Rated Power | 5500W x 2 for high-efficiency performance. |
| Maximum PV Array Open Circuit Voltage | 500Vdc. |
| MPPT Voltage Range | 60Vdc – 500Vdc for flexible solar array configurations. |
| Maximum MPPT Charge Current | 160A for optimized solar charging. |
| Maximum Input Current | 18A x 2 for enhanced energy capture. |
| Maximum Charging Current (AC+PV) | 160A. |
| Maximum AC Charging Current | 120A. |
| Size | 540 x 403 x 122 mm. |
| Weight | 14.8 kg. |
Suitable Applications
- Residential solar and backup systems
- Small offices, shops and farms
- Solar self-consumption installations
- Off-grid or grid-connected applications, according to inverter type
Important Installation Information
Installation must be completed by a qualified electrician or solar installer. Confirm the exact model, battery compatibility, PV string voltage, input current, phase configuration, cable sizing, breakers, surge protection, earthing and local grid requirements before installation.
