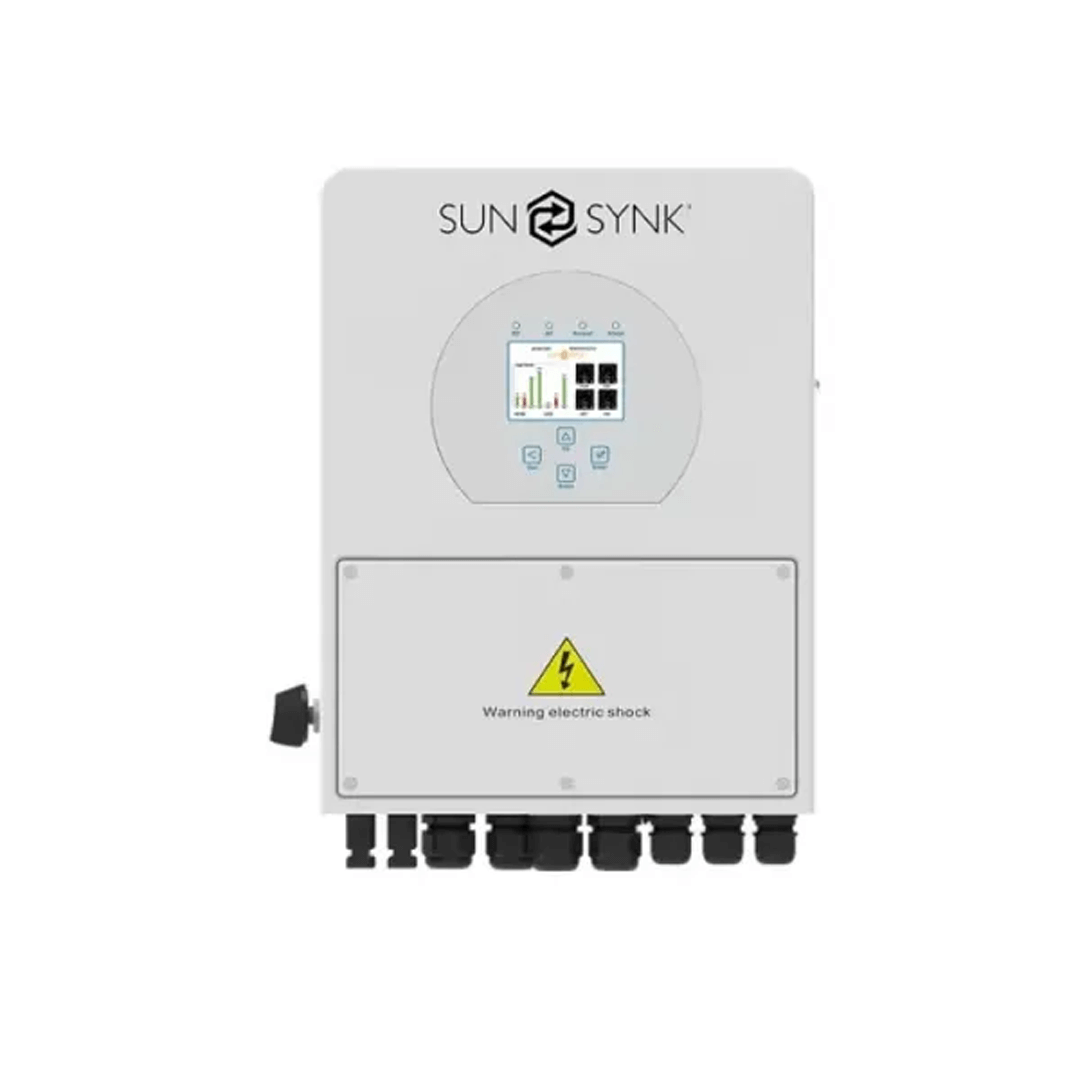

The Sunsynk 12 kW Three-Phase Hybrid Inverter (model SUNSYNK-12K-SG04LP3) is a low-voltage (48 V) storage inverter for homes, small estates and light-commercial sites on 400/230 V. It blends solar, batteries and grid/generator power, supports export-limit/zero-export (with meter/CTs), fast UPS-grade switchover and app/cloud monitoring. It also allows highly unbalanced three-phase loading (e.g., 20/20/60%) and can be paralleled for larger systems. Supply only.
PRODUCT SPECS
• Model: SUNSYNK-12K-SG04LP3; enclosure IP65; ambient −45 °C to 60 °C (derates >45 °C).
• AC output (utility-interactive): 12,000 W rated; max AC output 13,200 W; 50/60 Hz; three-phase 3L/N/PE 220/380 V or 230/400 V. Peak output 24,000 W (10 s). Max continuous AC pass-through 45 A.
• Battery (LV): 48 V (40–60 V) LiFePO₄/lead-acid; max charge/discharge current 240 A; discharge power up to 12,000 W. CAN/RS485 BMS comms (profile dependent).
• PV input: 2 × MPPT; MPPT window 200–650 V DC; PV voltage 160–800 V DC (max 550 V nominal on table); max PV input power 15,600 W; PV current 26 A + 13 A; Isc 34 A + 17 A.
• Phase features: 100% unbalanced output capability; up to 16 inverters in parallel; RS485/Wi-Fi interface; 5-year warranty (per Sunsynk). (Sunsynk)
• Typical functions: time-of-use/peak-shaving, zero-export/export-limit (with meter/CTs), generator support, local LCD/HMI + cloud monitoring. (Sunsynk)
WHAT’S INCLUDED (SUPPLY ONLY)
• 1 × Sunsynk 12 kW 3-phase hybrid inverter (LV 48 V)
• Basic user/installation documentation (model/batch dependent)
WHAT’S NOT INCLUDED
• No installation or commissioning
• No batteries, PV modules/mounting, smart meter/CTs or data-logger
• No AC/DC protection (DBs, breakers, surge), isolators, cables, trunking or comms leads
INSTALLATION & COLLECTION
• Must be installed and commissioned by a qualified installer; for grid-tied use, comply with your municipality’s SSEG process.
• Ready for collection within 3 hours: Shop 4, 135 Main Rd, Somerset West, Cape Town, 7130
• Same-day courier available nationwide (subject to cut-off, stock confirmation and courier availability)
