Description

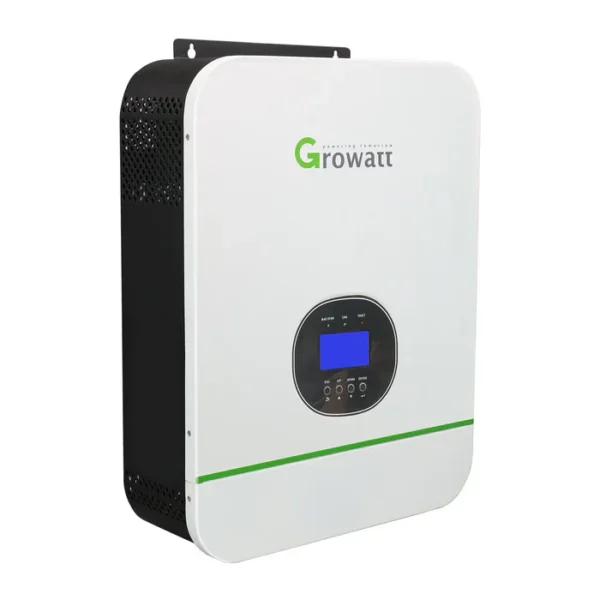

The Growatt 3kVA (3kW) 48V off-grid/hybrid inverter is a compact, pure-sine unit for small homes, flats and home offices that want reliable backup and solar self-consumption. It integrates a high-frequency inverter, MPPT solar charge controller and UPS-grade transfer in one box. Supply only—ideal if you already have an installer and will source wiring, protection and mounting separately.
PRODUCT SPECS (SUMMARY)
• Model class: SPF 3000TL HVM-48 (48V off-grid/hybrid) — single-phase 230 V. (rakiten.co.zw)
• Rated output: 3000 VA / 3000 W; pure-sine; surge 6000 VA; peak efficiency 93%. (rakiten.co.zw)
• AC output & transfer: 230 V ±5% @ 50/60 Hz; transfer time 10 ms (PC) / 20 ms (home appliances). (rakiten.co.zw)
• Battery: 48 V DC (LiFePO₄/lead-acid); AC charger 15 A (grid/genny). (rakiten.co.zw)
• PV input (built-in MPPT): max array power 2400 W; MPPT window 60–115 V DC; max Voc 145 V DC; max solar charge current 40 A. (rakiten.co.zw)
• MPPTs/strings: 1 MPPT / 1 string (typical for this model class). (rakiten.co.zw)
• Parallel capability: not supported on the 3kVA HVM-48 variant (5000 TL adds parallel). (rakiten.co.zw)
• AC input window: selectable 170–280 V (PC) or 90–280 V (home appliances); frequency auto-sensing 50/60 Hz. (rakiten.co.zw)
• Standby consumption: ≈2 W (datasheet). (rakiten.co.zw)
• Size & weight: 120 × 315 × 390 mm; ≈8 kg. (rakiten.co.zw)
WHAT’S INCLUDED (SUPPLY ONLY)
• 1 × Growatt 3kVA (48 V) off-grid/hybrid inverter
• User/installation guide (model/batch dependent)
WHAT’S NOT INCLUDED
• No installation or commissioning
• No batteries, solar panels or mounting hardware
• No AC/DC protection (DBs, breakers, fuses, surge), isolators, cables, trunking or comms leads
COLLECTION & COURIER
• Collect within 3 hours: Shop 4, 135 Main Rd, Somerset West, Cape Town, 7130
• Same-day courier available nationwide (subject to cut-off, stock confirmation and courier availability)
