Description

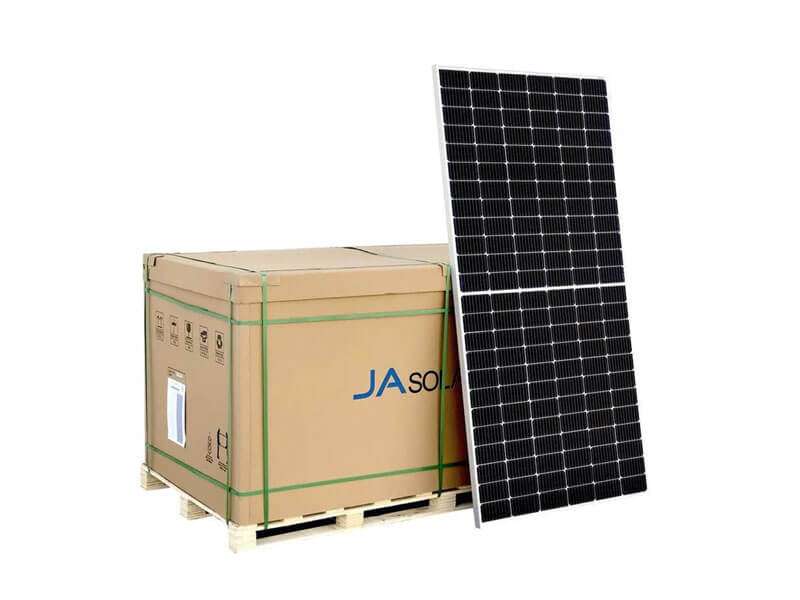

555W JA Solar Panels | Full Pallet
The 555W JA Solar Panels | Full Pallet is a solar and electrical installation component intended for use in correctly designed energy systems. It supports safe, organised and professional installation when selected to match the required current, voltage, conductor size, mounting profile or equipment specification.
Key Features
- Supports a safe, neat and serviceable solar or electrical installation.
- Select the product according to the required voltage, current, conductor or mounting specification.
- Installation must comply with applicable electrical and structural standards.
Technical Specifications
| Brand | JA Solar |
|---|---|
| Product | 555W JA Solar Panels | Full Pallet |
| Product category | Wholesale Deals |
| Maximum Power (Pmax) | 555W |
| Module Efficiency | 21.6% |
| Operating Voltage (Vmp) | 41.8V |
| Operating Current (Imp) | 13.28A |
| Open Circuit Voltage (Voc) | 50.5V |
| Short Circuit Current (Isc) | 14.04A |
| Temperature Coefficient of Pmax | -0.35%/°C |
| Operating Temperature Range | -40°C to +85°C |
| Maximum System Voltage | 1500V DC |
| Dimensions | 2279 x 1134 x 35 mm (89.7 x 44.6 x 1.4 inches) |
| Weight | 28 kg (61.7 lbs) |
Suitable Applications
- Solar PV installations
- Battery and inverter installations
- Electrical distribution and protection
- Maintenance, upgrades and new system builds
Important Installation Information
This component must be selected and installed by a competent person. Confirm its exact rating, dimensions and compatibility with the connected equipment. Product appearance or minor specifications may vary by supplier batch where no fixed model number is stated.
