Description

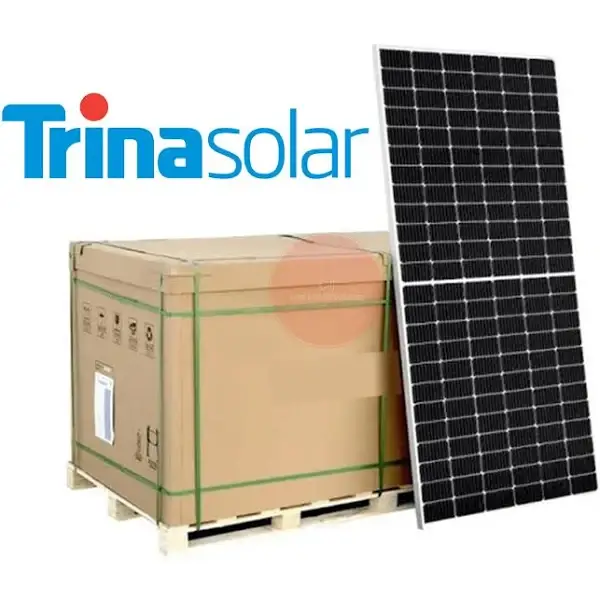

420W Trina Solar Panels Pallet (30)
The 420W Trina Solar Panels Pallet (30) is a photovoltaic module designed to convert sunlight into DC electricity for residential, commercial or utility-scale solar arrays. Its high-output format helps installers achieve the required array capacity using an appropriately engineered string layout.
Key Features
- Suitable for roof-mounted or ground-mounted arrays when the mounting system is approved for the module.
- PV string voltage and current must remain within the connected inverter or charge-controller limits.
Technical Specifications
| Brand | Trina Solar |
|---|---|
| Product | 420W Trina Solar Panels Pallet (30) |
| Product category | Solar Panels |
| Rated power | 420W |
| PTC Power Rating | 389.1 |
| Tier Level | Tier 1 |
| Upper Output Tolerance [%] | 5 |
| Voc – Open Circuit Voltage (STC) [V] | 49.6 |
| Isc – Short Circuit Current (STC) [A] | 10.66 |
| Vmpp-Voltage at Maximum Power (STC) [V] | 40.9 |
| Impp-Current at Maximum Power (STC) [A] | 10.15 |
| Module Efficiency (STC) [%] | 20.4 |
| Nominal Operating Cell Temperature (NOCT) | 41°C (±3°C) |
| Maximum System Voltage [V] | 1500 |
| Cell Technology | Monocrystalline |
| Number of Cells (Pieces) | 144 |
Suitable Applications
- Residential rooftop solar
- Commercial and industrial roofs
- Ground-mounted PV arrays
- Utility or agricultural solar projects, subject to module type
Important Installation Information
Electrical values vary by exact module suffix and operating conditions. The installer must confirm the final datasheet, string length, open-circuit voltage at minimum temperature, operating current, mounting zones, wind loading and compatible connectors before installation.
