Description

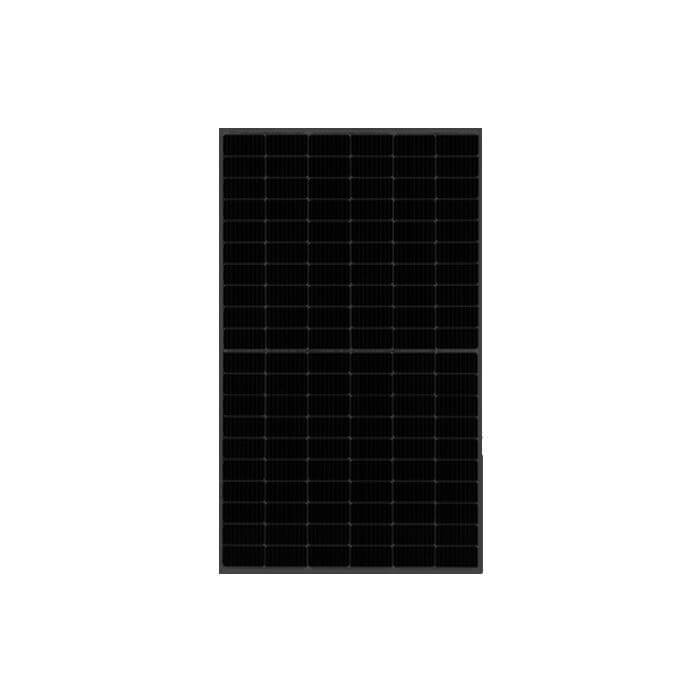

550W mono Canadian all weather Solar panels
The 550W mono Canadian all weather Solar panels is a photovoltaic module designed to convert sunlight into DC electricity for residential, commercial or utility-scale solar arrays. Its high-output format helps installers achieve the required array capacity using an appropriately engineered string layout.
Key Features
- Monocrystalline cell technology for efficient use of installation area.
- Suitable for roof-mounted or ground-mounted arrays when the mounting system is approved for the module.
- PV string voltage and current must remain within the connected inverter or charge-controller limits.
Technical Specifications
| Brand | Canadian Solar |
|---|---|
| Product | 550W mono Canadian all weather Solar panels |
| Product category | Solar Panels |
| Rated power | 550W |
| Cell technology | Monocrystalline |
| Supplier Part No | CS6W-550MS-N-FRAME-T6 |
| Weight | 27.6 kg |
| Rated Power | 550 W |
| MCS Reference | BABT8767-50 |
| Length | 2,278 mm |
| Width | 1,134 mm |
| Depth | 30 mm |
| VMPP | 41.7 V |
| IMPP | 13.2 A |
| Isc | 14 A |
| Voc | 49.6 V |
Suitable Applications
- Residential rooftop solar
- Commercial and industrial roofs
- Ground-mounted PV arrays
- Utility or agricultural solar projects, subject to module type
Important Installation Information
Electrical values vary by exact module suffix and operating conditions. The installer must confirm the final datasheet, string length, open-circuit voltage at minimum temperature, operating current, mounting zones, wind loading and compatible connectors before installation.
