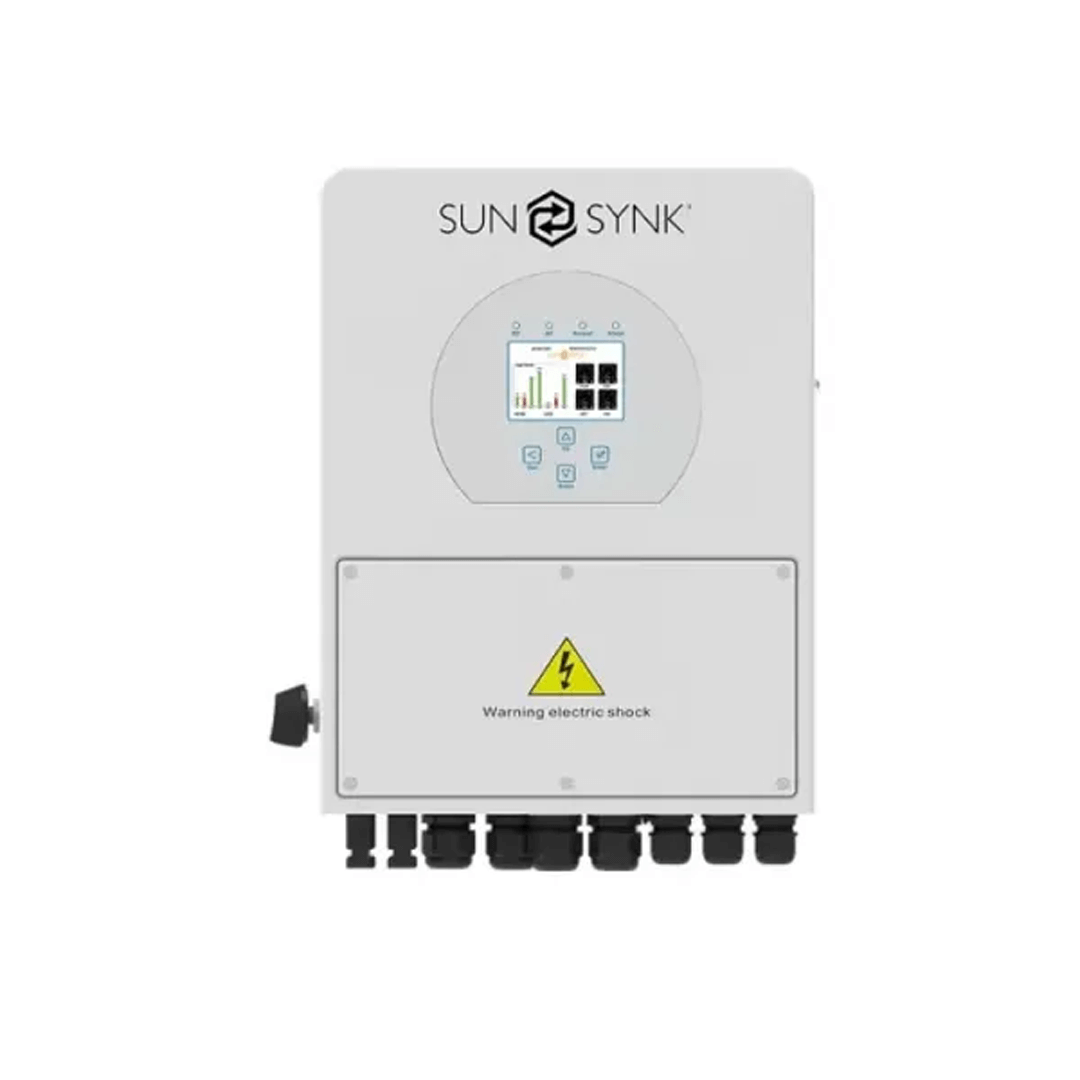

8kW Sunsynk Hybrid

R29,800.00

Category: Inverters

Description
Reviews (0)

Model	Sunsynk 8kW 1P Hybrid PV Inverter
Battery Input Data
Battery Type	Lead-Acid or Li-lon
Battery Voltage Range (V)	40V-60V
Max.Charging Current (A)	190A
Max.Discharging Current (A)	190A
Charging Curve	3 Stages/Equalization
External Temperature Sensor	Optional
Charging Strategy for Li-lon Battery	Self-Adaption to BMS
PV String Input Data
Max.DC Input Power (W)	8800W
Max.DC Input Voltage (V)	500V
MPPT Range (V)	125V-425V
Start-up Voltage (V)	150V
Max. lnput Current (A)	18A+9A
No. of MPPT Trackers	2
No. of Strings Per MPPT Tracker	2/1
AC Output Data
Rated AC Output and UPS Power (W)	8000W
Peak Power (off grid)	2 Times Rated Power for 10 Seconds
Max. AC Current (A)	33A
Output Frequency and Voltage	50, 230 Vac (Single Phase)
Grid Type	Single Phase
Current Harmonic Distortion	THD<3% (Linear Load<1.5%)
Efficiency
Max.Efficiency	97.60%
Euro Efficiency	97.00%
MPPT Efficiency	99.90%
Protection
PV Input Lightning Protection	Integrated
Anti-islanding Protection	Integrated
PV String Input Reverse Polarity Protection	Integrated
Insulation Resistor Detection	Integrated
Residual Current Monitoring Unit	Integrated
Output Over Current Protection	Integrated
Output Shorted Protection	Integrated
Output Over Voltage Protection	Integrated
Certifications And Standards
Grid Regulation	UL1741 ,IEEE1547, VDE-ARN 4105, VDE0126
Safety Regulation	IEC62109-1&2, IEC62040-1
EMC	EN61000-6-1, EN61000-6-3, FCC 15 class B
South African Certifications	NRS097-2-1: 2017 Edition 2
General Data
Operating Temperature Range (°C)	-25~60°C, >45 Derating
Cooling	Fan
Noise (dB)	<30
Communication with BMS	RS485, CAN
Weight (kg)	32KG
Size (LengthWidthHeight mm)	680420233mm
Protection Degree	IP65
Installation Style	Wall-Mounted
Warranty	5 Years
