Description

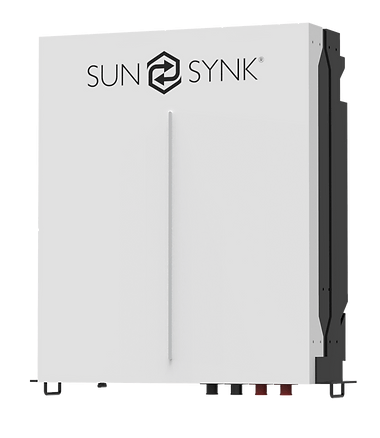

Sunsynk X-Series 5.12kWh 51.2V Battery (NEW)
The Sunsynk X-Series 5.12kWh 51.2V Battery (NEW) is an energy-storage solution for compatible solar, backup and off-grid systems. It is intended to store surplus energy and supply supported loads when solar production is low or grid power is unavailable, subject to correct inverter communication and system design.
Key Features
- Provides rechargeable energy storage for compatible backup and solar systems.
- Must be paired with an inverter that supports the battery voltage and communication protocol.
- Final usable energy and discharge capability depend on the exact model settings and system design.
Technical Specifications
| Brand | Sunsynk |
|---|---|
| Product | Sunsynk X-Series 5.12kWh 51.2V Battery (NEW) |
| Product category | Batteries |
| Nominal energy capacity | 5.12kWh |
| Nominal voltage / voltage class | 51.2V |
| – Battery Chemistry | LiFePO4 |
| – Nominal Energy [1] | 5.12kWh |
| – Nominal Capacity | 100Ah |
| – Rated Voltage | 51.2Vdc |
| – Operating Voltage Range | 43.2Vdc ~ 57.6Vdc |
| – Max. Charge/Discharge Current [2] | 50A / 100A |
| – Scalability | Recommended ≤3 units, Maximum 8 in Parallel |
| – Depth of Discharge | 95% |
| – Communication | RS485, CAN, Wi-Fi (Optional) |
| – Dimensions (WxDxH) | 420 x 140 x 650 mm |
| – Weight | 45 kg |
Suitable Applications
- Residential backup power
- Solar self-consumption
- Off-grid energy storage
- Commercial storage systems when the voltage platform is compatible
Important Installation Information
Confirm inverter compatibility, battery voltage, BMS communication, charge and discharge settings, cable sizing and protection before installation. Mixing unsupported battery models, voltages or firmware versions can cause poor performance or equipment damage.
