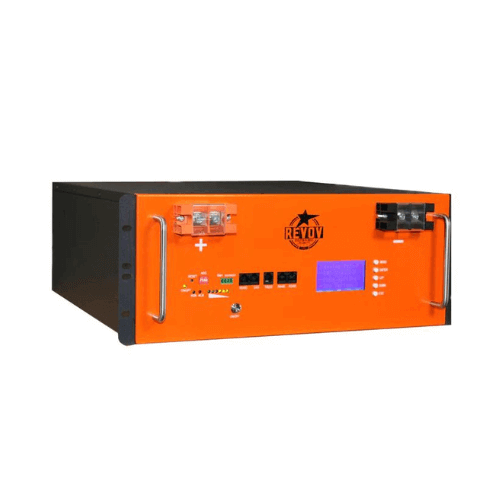

10.2kWh Revov R200 Lithium-Iron Battery

Description

REVOV R200 10.2kWh Lithium-Iron Battery – 51.2V, 200Ah

Key Features

• High Energy Density & Efficiency:
  Delivers 10.2kWh of reliable energy storage using automotive-grade LiFePO4 cells, ensuring excellent continuous high-current discharge performance.

• Durable & Long Lifecycle:
  Designed for daily cycling with an expected lifetime of 10+ years (up to 7000 cycles), the REVOV R200 offers a cost-effective solution with a low cost per cycle.

• Robust Battery Management System:
  Features an integrated BMS with CAN Bus communication and LCD display for real-time battery monitoring, overcharge, over-discharge, and over-temperature protection.

• Scalable & Versatile Installation:
  With a 16-cell configuration and compatibility with major inverter brands, the REVOV R200 is ideal for backup, off-grid, and renewable energy storage applications. Its design supports easy wall or rack mounting.

Specifications

• Capacity: 10.2kWh

• Voltage: 51.2V

• Rated Capacity: 200Ah

• Maximum Charge/Discharge Current: 160A

• Depth of Discharge: Up to 95%

• Weight: Approximately 83.6kg

• Dimensions (L x W x H): 520mm x 442mm x 221mm

• Cycle Life: Up to 7000 cycles (at 80% DOD)

• Warranty: 10 years or 3500 cycles (whichever comes first)

• Interface: CAN Bus for seamless inverter communication
