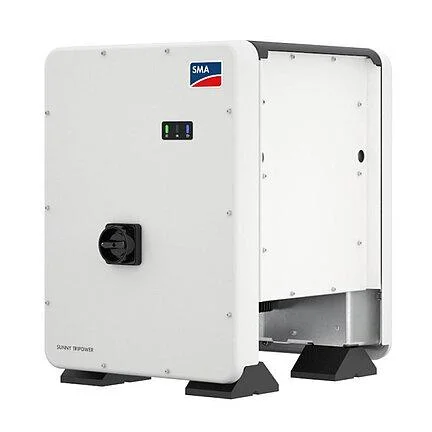

The Sunny Tripower CORE1 is the world’s first free-standing string inverter for decentralized rooftop and ground-based PV systems as well as covered parking spaces. The CORE1 is the third generation in the successful Sunny Tripower product family and is revolutionizing the world of commercial inverters with its innovative design.
Related products
-
Inverters
16Kw Deye Single Phase Hybrid Inverter + FREE WIfi Dongle
Features:
- A high-resolution LCD screen gives you all the information you need about your inverter.
- IP65 protection degree.
- DC couple and AC couple to retrofit existing solar system.
- You can connect up to 16 Deye Inverters in parallel, making it possible to have AC output of up to 256kW with one input PV array!; Support multiple batteries parallel.
- Max. charging/discharging current of 290A.
- 6 time periods for battery charging/discharging.
- Support storing energy from a diesel generator.
- LCD Touch display and buttons, simple solar system for residential use.
- Monitoring is possible via a web browser or mobile app, so you can see how your solar system is performing at any time.
- The Deye inverter is a hybrid inverter that uses lithium-ion and lead-acid batteries.
- It comes with a warranty of 5 years.
Technical Data.
- Model: SUN-16K-SG01LP1-EU
- Battery Type: Lead-acid or Li-lon.
- Battery Voltage Range: 40-60V.
- Max. Charging Current: 290A.
- Max. Discharging Current: 290A.
- UPS Power: 16000W.
- External Temperature Sensor: Yes.
- Charging Curve: 3 Stages / Equalization.
- Charging Strategy for Li-Ion Battery: Self-adaption to BMS.
PV String Input Data.
- Max. DC Input Power: 20800W.
- Max. DC Input Voltage: 500V.
- Start-up Voltage: 50V.
- MPPT Range: 150-425V.
- Rated DC Input Voltage: 370V.
- PV Input Current: 26A+26A+26A.
- Max. PV ISC: 44A+44A+44A.
- Number of MPPT / Strings per MPPT: 3/2.
General Data.
- Operating Temperature Range: -45~60º C, >45º C derating.
- Cooling: Smart cooling.
- Noise: <30 dB.
- Communication with BMS: RS485; CAN.
- Weight: 51.5kg.
- Size: 464W×798.4H×300Dmm.
- Protection Degree: IP65.
- Installation Style: Wall-mounted.
- Warranty: 5 years.
- Max. Number of Parallel (PCS): 16.
Efficiency.
- Max. Efficiency: 97.60%.
- Euro Efficiency: 96.50%.
- MPPT Efficiency: 99.90%.
