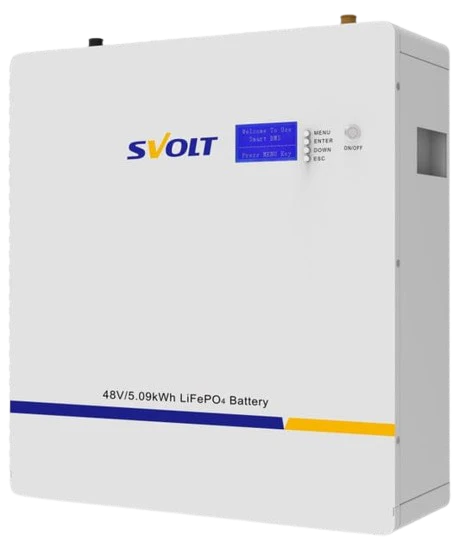

5Kwh S Volt Lithium Battery Wall Mount

R13,500.00

Category: Batteries

Specification	Value
Battery chemistry	LiFePO₄
Nominal voltage	51.2 V
Nominal capacity	106 Ah
Usable energy (5.43 kWh)	5.43 kWh
Rated DC power	5.12 kW (51.2 V × 100 A)
Peak discharge power	7.68 kW (51.2 V × 150 A, 100 ms)
Dimensions (L×W×H)	598 × 360 × 155 mm
Weight	≈ 44.6 kg
Terminal type	Fast plug-in/plug-out
Case material	SPCC steel
Built-in BMS	Yes
Internal resistance	< 25 mΩ
Round-trip efficiency	> 97 %
Self-discharge	< 3 % per month
Max parallel units	16 in parallel (no series)
Cycle life	> 6 000 cycles (0.3 C, 25 °C, 90 % DoD)
Operating voltage range	43.2 V – 57.6 V
Recommended charge voltage	56.0 V ± 0.2 V
Max charge voltage	58.4 V ± 0.2 V
Recommended charge current	50 A
Max continuous charge current	100 A
Recommended discharge voltage	44.8 V ± 0.2 V
Max discharge voltage	43.2 V ± 0.2 V
Max continuous discharge current	100 A
Peak discharge current	150 A (100 ms)
Charge temperature range	–5 °C to 65 °C
Discharge temperature range	–20 °C to 70 °C
Storage temperature	0 °C to 30 °C
Humidity range	0 % – 90 %
