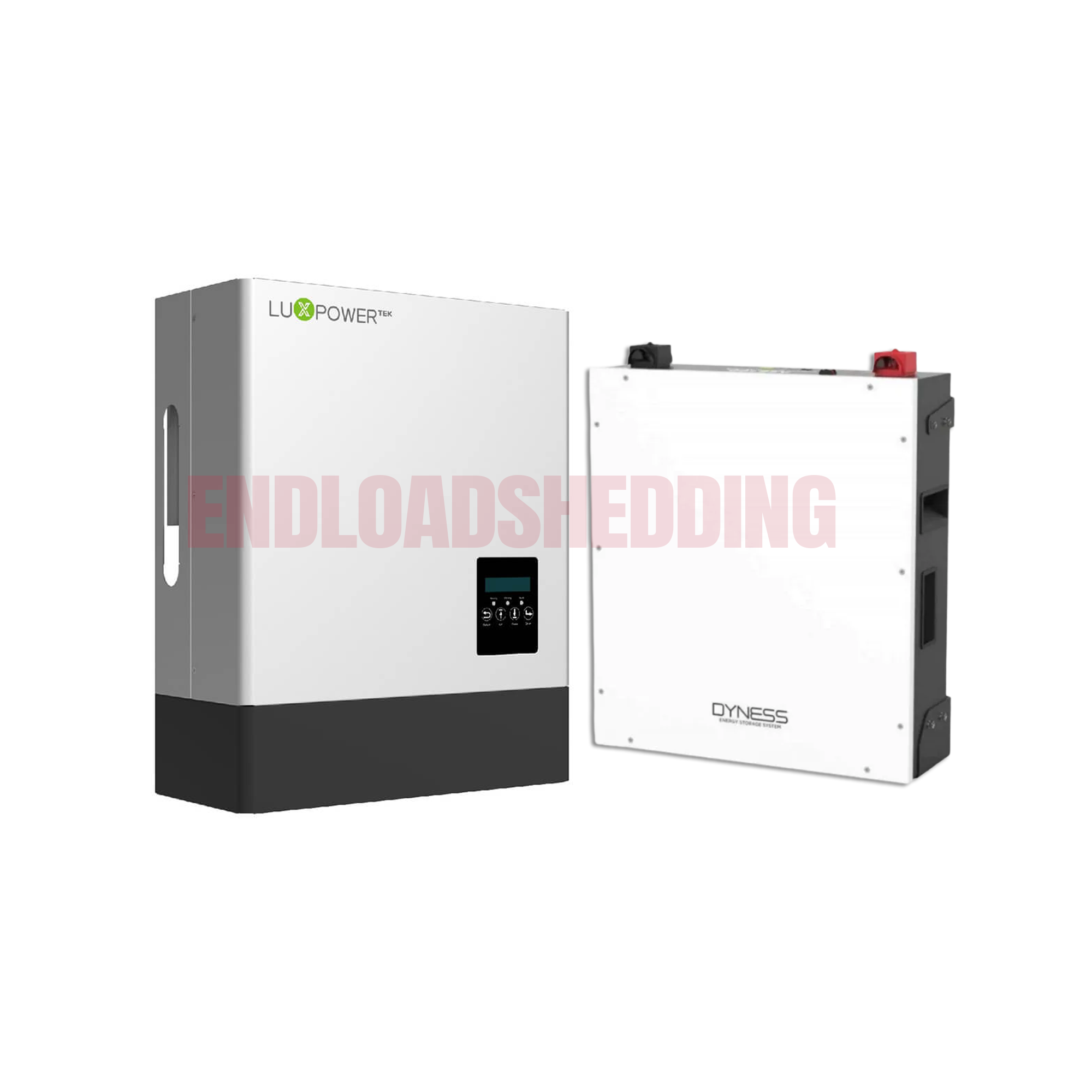

5kw Luxpower Combo

5kw Luxpower inverter

5.12kw Dyness inverter

_____________________________

5kw Luxpower

The Solar Select LuxPower SNA 5000 is one of the best off-grid inverters on the market. This inverter meets all the requirements we feel is important in an inverter of this type. With two high voltage MPPT’s and a max PV input of 6000 Watts, compatibility to communicate with a wide range of lithium batteries and full off-site monitoring via an App it is hard to beat this unit at this price point.

• Intelligent offgrid & hybrid modes
• Single phase or unbalanced three phase
• Free monitoring & remote upgrade
• Wide PV input voltage range
• PV & AC power loads simultaneously
• Easy to use with battery
• Advanced Parallel, up to 50kW
• Separate generator interface available
• Host inverter automatically generated to
  manage entire system

Output
• Rated Power: 5000W
• Parallel Supported: Yes
• Normal Output Voltage: 230VAC-240VAC, Split Phase 220VAC/110VAC
• Normal Output Frequency: 50Hz / 60Hz
• Surge Power: 10000VA
• Switch Time: 10ms
• Wave Form: Pure Sine Wave

Battery
• Battery Type Supported: Lithium / Lead-Acid
• Normal Voltage: 51.2VDC / 48VDC
• Maximum Charging Voltage: 59VDC

Solar
• Maximum PV Power: 3200W / 3200W
• Number of MPP Trackers: 2
• Maximum PV Open Circuit Voltage: 480VDC
• MPPT Voltage Range: 100VDC – 385VDC
• Maximum Solar Charge Current: 100A
• Maximum Solar Input Current: 13A / 13A

Grid
• Normal Voltage: 230VAC
• AC Voltage Range: 110VAC-280VAC
• Maximum Charge Current: 60A
• Frequency Range: 50Hz / 60Hz (Auto Sensing)

Environment Limit
• Ingress Protection: IP20
• Relative Humidity: 5% to 95% (Non Condensing)
• Operating Temperature Range: 0°C to +50°C
• Storage Temperature: -15°C to +60°C
• Communication: CAN / RS485/ WIFI / GPRS

5.12kw Dyness Battery

Key Specifications:

• Capacity: 5.12kWh
• Battery Type: Lithium-ion
• Continuous Output Power
• Battery Management System (BMS): Yes
• Protection Features: Overcharging, Over-discharging, Short Circuit Protection
• Cycle Life: Ensuring a long-lasting energy solution

10 Years Warranty
