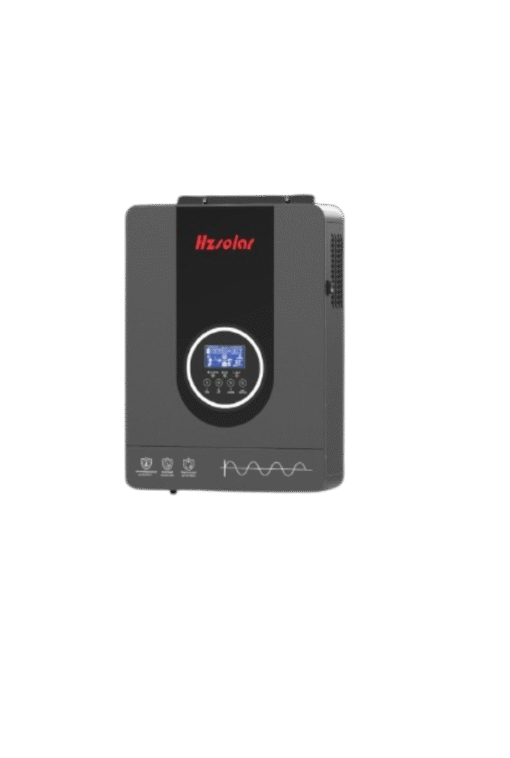

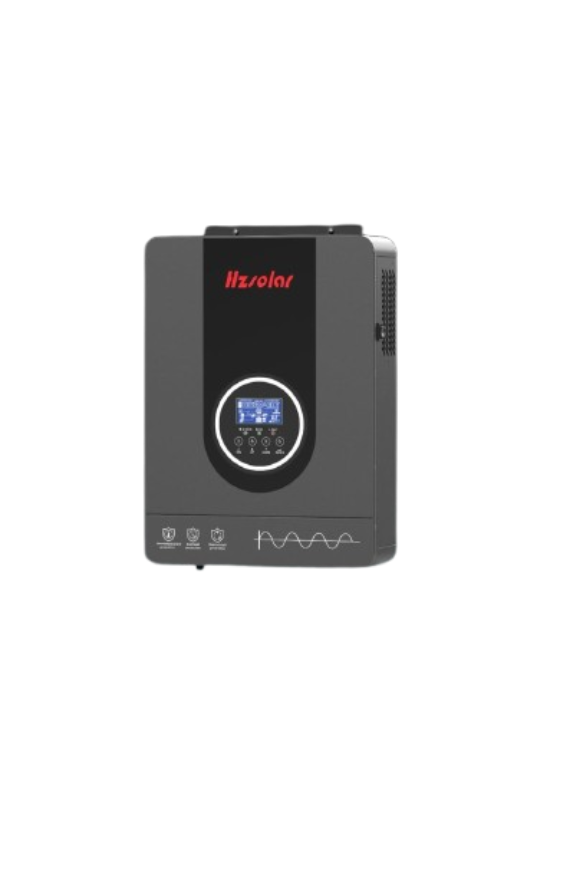

11.2 kW Hzsolar Hybrid Solar Inverter Specs

Key Features & Benefits

• High Power Rating: 11 kVA (≈11.2 kW) continuous output
• Hybrid Operation: Supports solar, battery and grid (or generator) input for seamless backup
• Parallel Expandability: Up to 9 units in parallel for multi-kW systems
• Dual MPPT Channels: Maximum PV harvest with two independent inputs

---

Electrical Specifications

Parameter	Specification
Continuous AC Output	11 kVA / 11.2 kW
AC Output Voltage / Frequency	230 VAC ±2% / 50 Hz
Peak Efficiency	> 95%
THD (Total Harmonic Distortion)	< 3%

---

PV Input (MPPT)

• Channels: 2 independent MPPT inputs
• Max. PV Input Voltage: 500 V DC per channel
• Max. PV Input Current: 18 A per channel
• Max. PV Power: 5 500 W per channel

---

Battery Requirements

• Battery Type: 48 V lithium (LiFePO₄) bank
• Recommended Configuration: 4 × 48 V modules (to optimize cycle life)
• Low‐Voltage Cut-Off:
  • 48 V battery: 43.5 V
  • 51.2 V battery: 46.6 V

---

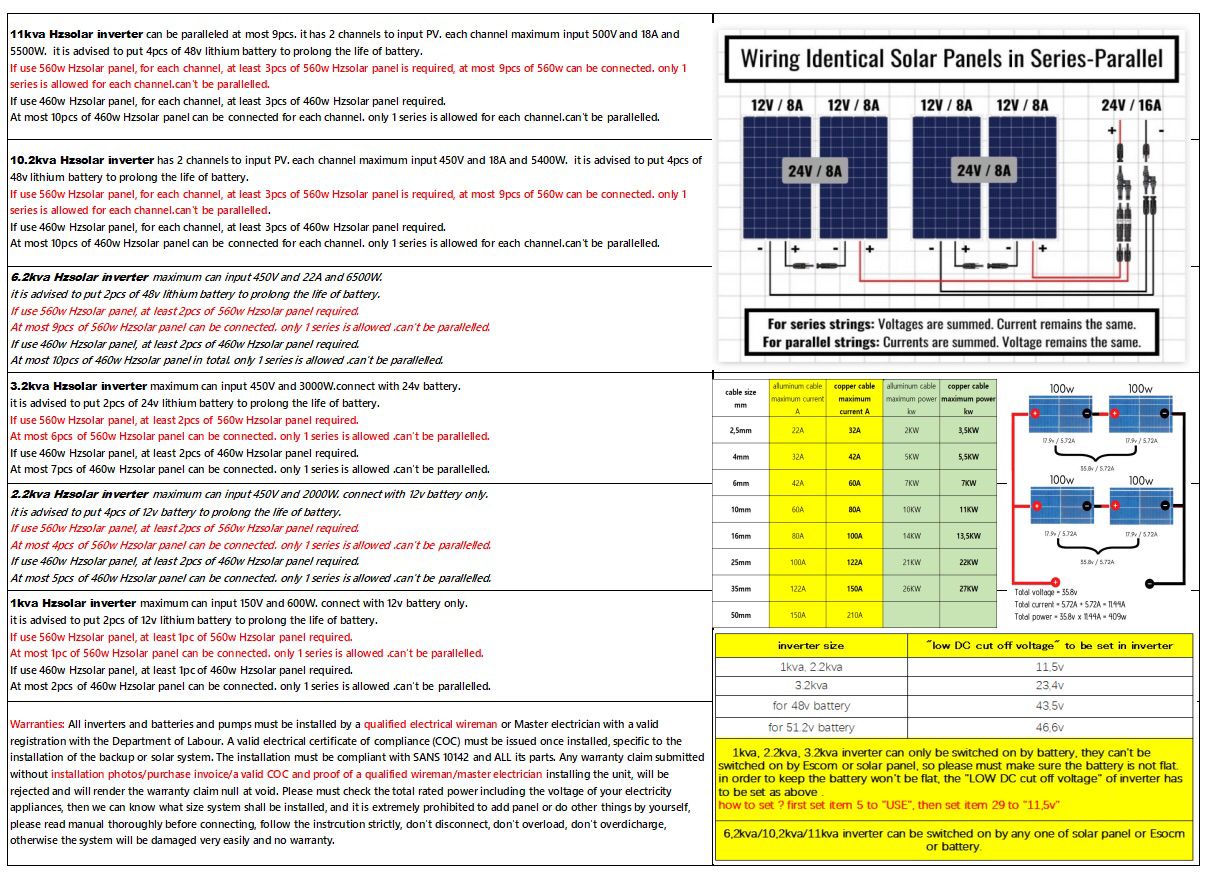

Solar Panel Configuration

With 560 W Panels

• Min. per MPPT: 3 panels in series
• Max. per MPPT: 9 panels in series
• Strings: Only one series string per channel (no parallel strings)

With 460 W Panels

• Min. per MPPT: 3 panels in series
• Max. per MPPT: 10 panels in series
• Strings: Only one series string per channel (no parallel strings)

---

Parallel Expansion

• Max Units in Parallel: 9 inverters
• Synchronization: Automatic load-sharing and fault isolation
• Use Case: Scale from 11.2 kW up to 100 kW+ installations

---

Start-Up & Control

• Auto Power On: Can be started by solar PV input, battery, or generator (Escom)
• Monitoring: Built-in LCD + RS232/RS485/Wi-Fi options

---

Environmental & Mechanical

• Operating Temperature: –10 °C to 50 °C
• Humidity: 0 % – 95 % (non-condensing)
• Enclosure: IP20
• Dimensions: 550 × 350 × 160 mm
• Weight: 28 kg

---

Warranty & Certifications

• Warranty: 2 years standard (extendable)
• Certifications: CE, RoHS, IEC 62109

---

Upgrade your solar system with the robust and versatile 11.2 kW Hzsolar hybrid inverter—perfect for maximizing solar uptime, ensuring clean backup power, and future-proofing your energy independence.
