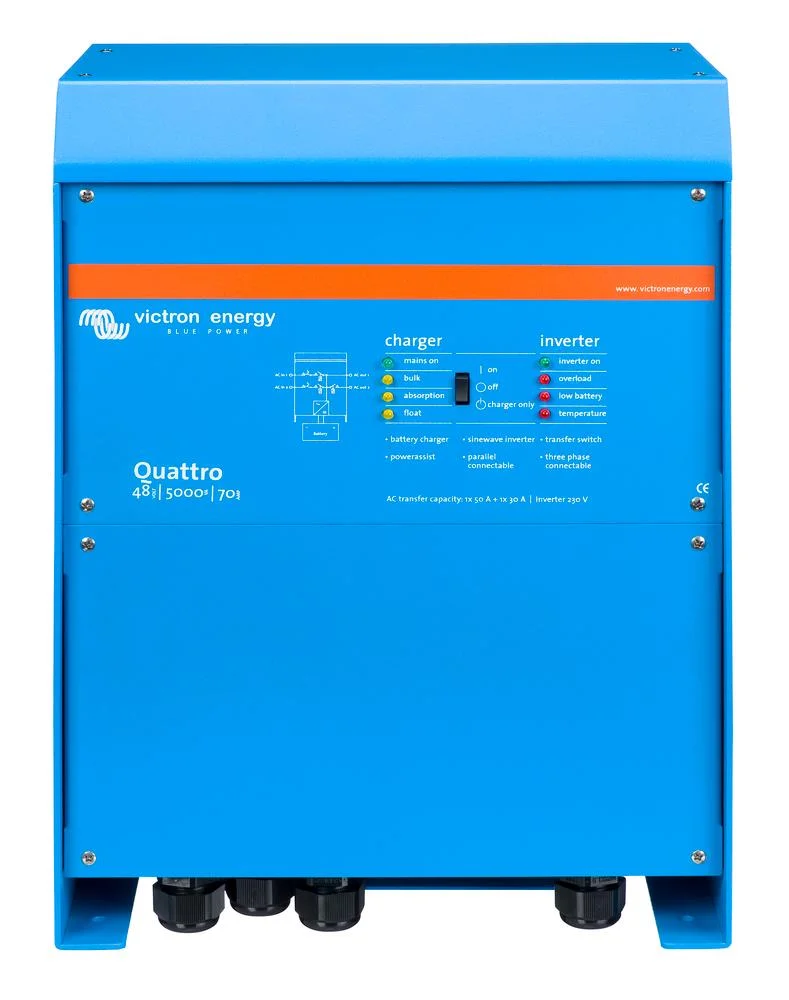

Similar to the MultiPlus, the Quattro is also a combined inverter and charger. Additionally, it can accept two AC inputs and automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple system integration features such as three or split phase operation and parallel operation.
Related products
-
Inverters
16Kw Deye Single Phase Hybrid Inverter + FREE WIfi Dongle
Features:
- A high-resolution LCD screen gives you all the information you need about your inverter.
- IP65 protection degree.
- DC couple and AC couple to retrofit existing solar system.
- You can connect up to 16 Deye Inverters in parallel, making it possible to have AC output of up to 256kW with one input PV array!; Support multiple batteries parallel.
- Max. charging/discharging current of 290A.
- 6 time periods for battery charging/discharging.
- Support storing energy from a diesel generator.
- LCD Touch display and buttons, simple solar system for residential use.
- Monitoring is possible via a web browser or mobile app, so you can see how your solar system is performing at any time.
- The Deye inverter is a hybrid inverter that uses lithium-ion and lead-acid batteries.
- It comes with a warranty of 5 years.
Technical Data.
- Model: SUN-16K-SG01LP1-EU
- Battery Type: Lead-acid or Li-lon.
- Battery Voltage Range: 40-60V.
- Max. Charging Current: 290A.
- Max. Discharging Current: 290A.
- UPS Power: 16000W.
- External Temperature Sensor: Yes.
- Charging Curve: 3 Stages / Equalization.
- Charging Strategy for Li-Ion Battery: Self-adaption to BMS.
PV String Input Data.
- Max. DC Input Power: 20800W.
- Max. DC Input Voltage: 500V.
- Start-up Voltage: 50V.
- MPPT Range: 150-425V.
- Rated DC Input Voltage: 370V.
- PV Input Current: 26A+26A+26A.
- Max. PV ISC: 44A+44A+44A.
- Number of MPPT / Strings per MPPT: 3/2.
General Data.
- Operating Temperature Range: -45~60º C, >45º C derating.
- Cooling: Smart cooling.
- Noise: <30 dB.
- Communication with BMS: RS485; CAN.
- Weight: 51.5kg.
- Size: 464W×798.4H×300Dmm.
- Protection Degree: IP65.
- Installation Style: Wall-mounted.
- Warranty: 5 years.
- Max. Number of Parallel (PCS): 16.
Efficiency.
- Max. Efficiency: 97.60%.
- Euro Efficiency: 96.50%.
- MPPT Efficiency: 99.90%.
SKU: n/a -
Inverters
3.6kw Must 3600w Solar Hybrid Inverter
The 3kVA Must Inverter 24V is a reliable and efficient energy conversion solution designed for residential and commercial solar power systems. With a power output of 3000 VA, it provides ample power to run multiple appliances and devices simultaneously. The Must Inverter features advanced monitoring and management capabilities, allowing you to track your solar power generation and energy consumption in real-time. It also comes with built-in battery charging capabilities, making it easy to charge your backup batteries and ensure uninterrupted power supply. With its durable and reliable construction, the Must Inverter is an excellent choice for those looking for a high-performance and long-lasting energy conversion solution for their solar power setup.
SKU: n/a -
Inverters
12Kw Deye Three Phase Hybrid Inverter + FREE Wifi Dongle
The 12kW 3 Phase Deye Hybrid Inverter is a powerful and versatile energy conversion solution designed for use in residential and commercial solar power systems. This hybrid inverter combines the functions of a solar inverter, battery charger, and grid-tie inverter, providing seamless energy management for your solar power setup. With a high-capacity power output of 12,000 watts and three-phase design, it can handle heavy-duty energy loads and provide efficient energy conversion in various settings. The Deye Hybrid Inverter features advanced monitoring and management capabilities, allowing you to track your solar power generation and energy consumption in real-time. With its durable and reliable construction, the Deye Hybrid Inverter is an excellent choice for those looking for a high-performance and long-lasting energy conversion solution for their solar power setup.
SKU: n/a
